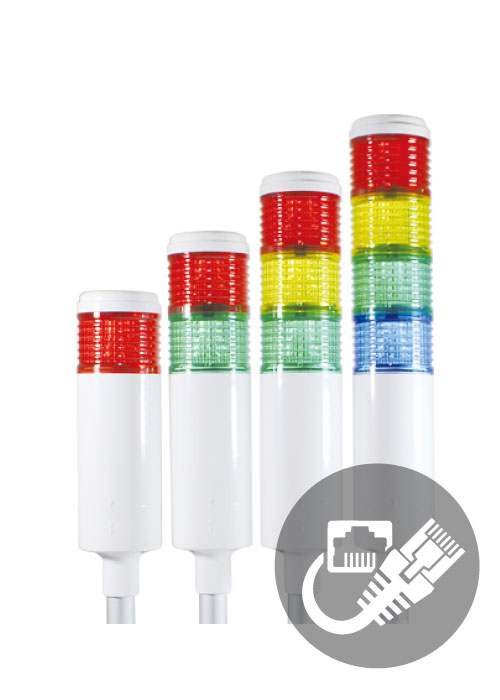

Ethernet Signal Tower Lamp
Signal tower controlled by connecting the Internet or LAN, can be used for remote control, and controlled by a web browser or an application program on a computer.
Ethernet signal tower lamp
Specification
Ethernet signal tower lamp
Controlled by web browser or application program on computer
Can be used for remote control purposes
Provides separate utility for setting IP address, subnet mask, and gateway
LED blinking type allows up to 4 levels
Basic 4 sounds (1 buzzer, 3 siren)
Buzzer maximum volume
90dB
Mounting rod (length, type) selectable

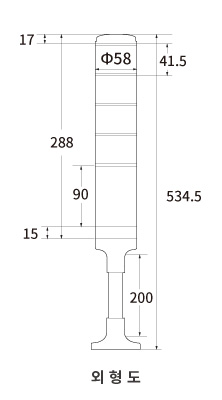

Outer diameter
Φ58 / Basic type mounting: horizontal bar (SH200) 200mm
Material (LENS )
GPPS
Material (Body )
ABS
Material (Reflector)
PC
Material (Pole)
Aluminum
Ambient temperature
-25℃ ~ +50℃ (no freezing)
Product Specification
AUT-EN
Outer diameter
Φ58 Ethernet signal tower
Tone
1 buzzer sound / 3 siren sound (basic 4 sound)
Color Step 1
(Step 1) Red (R)
Color Step 2
(Step 1) Red (R) (Step 2) Green (G)
3rd stage
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G)
Step 4
(Step 1) Red (R) (Step 2) Yellow (Y) (Step 3) Green (G) (Step 4) Blue (B)
Color combinations other than standard color combinations are possible with user-order specifications
AUT-EN Ethernet Signal Tower
| Type | Voltage | Singular | Timbre | Weight(g) |
|---|---|---|---|---|
| Ethernet AUT-EN | AC110V~AC220V | 1st stage ((R) ) |
1 buzzer |
505g |
| 2nd stage ((R) ,(G) ) | 542g | |||
| 3rd stage ((R) ,(Y) ,(G) ) | Alarm sound | 579g | ||
| 4th stage ((R) ,(Y) ,(G) ,blue (B) ) | 3 sirens | 616g | ||
| DC24V | 1st stage (red (R) ) | 414g | ||
| 2nd stage ((R) ,(G) ) | Emergency alarm | 451g | ||
| 3rd stage ((R) ,(Y) ,(G) ) | Emergency alarm | 488g | ||
| 4th stage ((R) ,(Y) ,(G) ,blue (B) ) | Fire alarm | 525g |
Mounting Table
Horizontal bar (SH)
Rod length : 200mm (SH20) Rod length: 80mm (SH08) Rod length : 40mm (SH04)
Vertical bar (SV)
Rod length : 200mm (SV20) Rod length: 60mm (SV06)
Direct connection type (G)
How to use and connection diagram

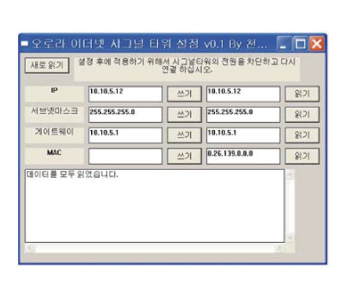

Setting tool
Set the signal tower's IP and subnet mask gateway.

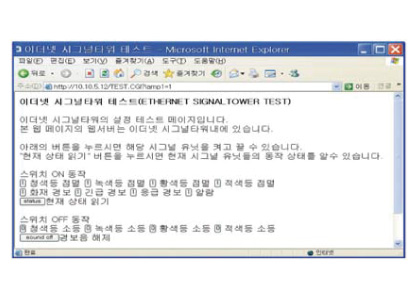

Test web page screen
The web server and web page are in the signal tower, and you can test the operation with a web browser.

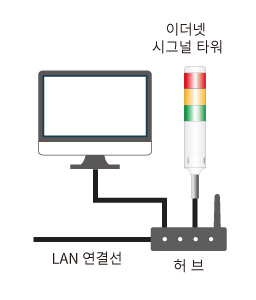

Connection diagram
