Cast Signal Phone
Cast-type signal phone used for ship heavy industry due to its high strength and excellent corrosion resistance with aluminum alloy structure
Cast Signal Phone
Specification
AUP-EWM Cast Signal Phone
Excellent durability with aluminum housing structure
Perfect waterproof structure, suitable for outdoor, ship, and heavy industries
It is divided into three types according to the housing: A type, B type, and C type.
Material
Aluminum housing + ABS resin signal phone
Ambient temperature
-25℃ ~ +50℃
Product specification

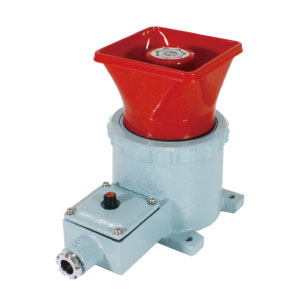

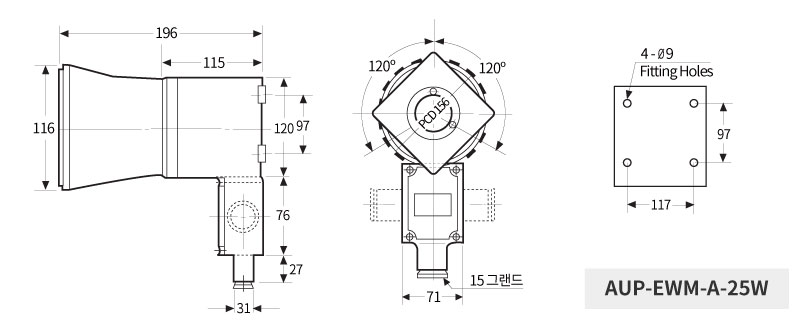

AUW-EWM-A
Terminal box and cable gland 15 mounted on the housing
◎ Two types of maximum output 25W /35W available
| Built-in sound | Volume | Rated voltage | Weight | |
|---|---|---|---|---|
| Alarm Sound | Basic (3 notes) | |||
| Siren AS | Emergency | 115dB | AC110V/220V combined |
AC: 3067g
DC: 3040g |
| emergency | ||||
| fire | ||||
| Melody AM | My happy home | DC 12V | ||
| For Elysee | ||||
| Turkish march | DC 24V | |||
| Buzzer AB | Beep~beep~beep | |||
| Ding dong ding dong | DC 48V | |||
| Beep beep beep | ||||

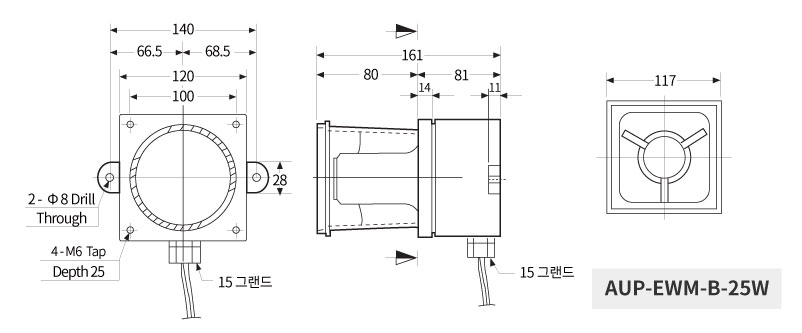

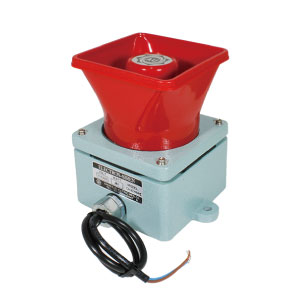

AUP-EWM-B-25W
#16 zinc connector mounted on the housing
◎ Maximum output 25W
| Built-in sound | Volume | Rated voltage & current consumption | Weight | |
|---|---|---|---|---|
| Alarm Sound | Basic (3 notes) | |||
| Siren AS | Emergency | 115dB | AC110V/220V combined |
AC: 2121g
DC: 2101g |
| emergency | ||||
| fire | ||||
| Melody AM | My happy home | DC 12V | ||
| For Elysee | ||||
| Turkish march | DC 24V | |||
| Buzzer AB | Beep~beep~beep | |||
| Ding dong ding dong | DC 48V | |||
| Beep beep beep | ||||

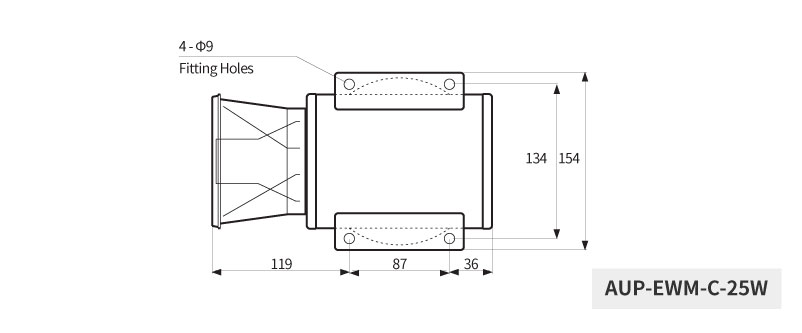

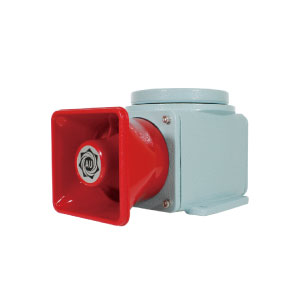

AUP-EMW-C 25W
Mounting #16 zinc connector on the housing
◎ Maximum output 25W unidirectional signal phone attached
| Built-in sound | Volume | Rated voltage & current consumption | Weight | |
|---|---|---|---|---|
| Alarm Sound | Basic (3 notes) | |||
| Siren AS | Emergency | 115dB | AC110V/220V combined |
AC: 2796g
DC: 2771g |
| emergency | ||||
| fire | ||||
| Melody AM | My happy home | DC 12V | ||
| For Elysee | ||||
| Turkish march | DC 24V | |||
| Buzzer AB | Beep~beep~beep | |||
| Ding dong ding dong | DC 48V | |||
| Beep beep beep | ||||

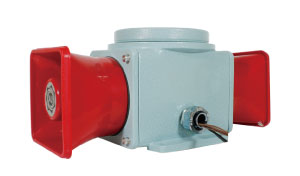

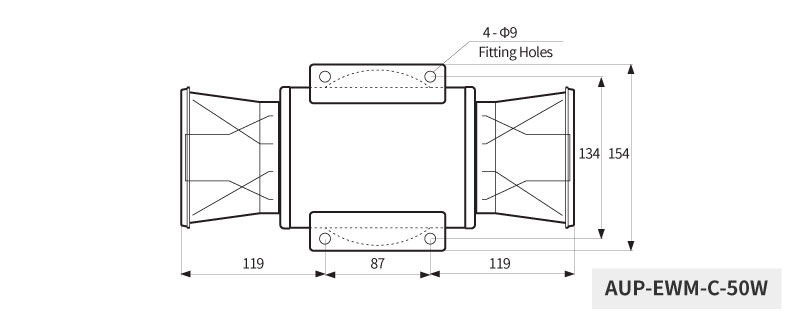

AUP-EWM-C-50W
Mounting #16 zinc connector on the housing
50W maximum output two-way signal phone attached
Suitable for places where there is a lot of noise or left * right direction due to high output
| Built-in sound | Volume | Rated voltage & current consumption | Weight | |
|---|---|---|---|---|
| Alarm Sound | Basic (3 notes) | |||
| Siren AS | Emergency | 130dB | AC110V/220V combined |
AC: 3678g
DC: 3628g |
| emergency | ||||
| fire | ||||
| Melody AM | My happy home | DC 12V | ||
| For Elysee | ||||
| Turkish march | DC 24V | |||
| Buzzer AB | Beep~beep~beep | |||
| Ding dong ding dong | DC 48V | |||
| Beep beep beep | ||||
